What We Make

HDPE conduit, made to spec and made here.

HDPE conduit, ¾″ through 6″, manufactured in Alto, North Georgia and positioned for distribution across the Southeast. Serving utility, telecom, infrastructure, and commercial markets.

Now accepting inquiries — production online today.

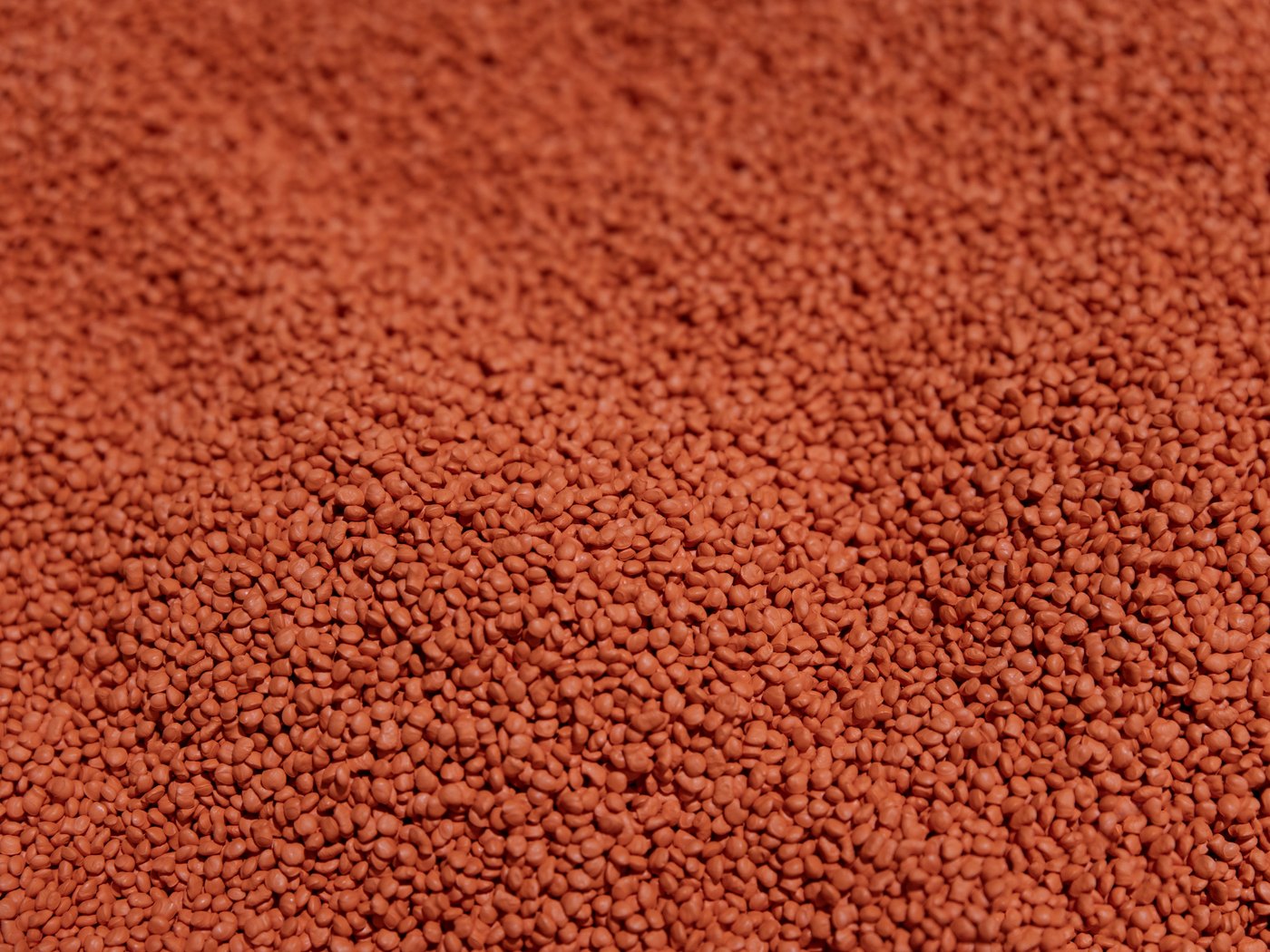

Close-up of orange HDPE resin pellets, the raw material used to manufacture our conduit

HDPE Conduit

HDPE conduit for utility, telecom, infrastructure, and commercial applications, manufactured in the USA. Multiple SDR and SCH options across the size range.

¾″ through 6″ · Multiple SDR + SCH

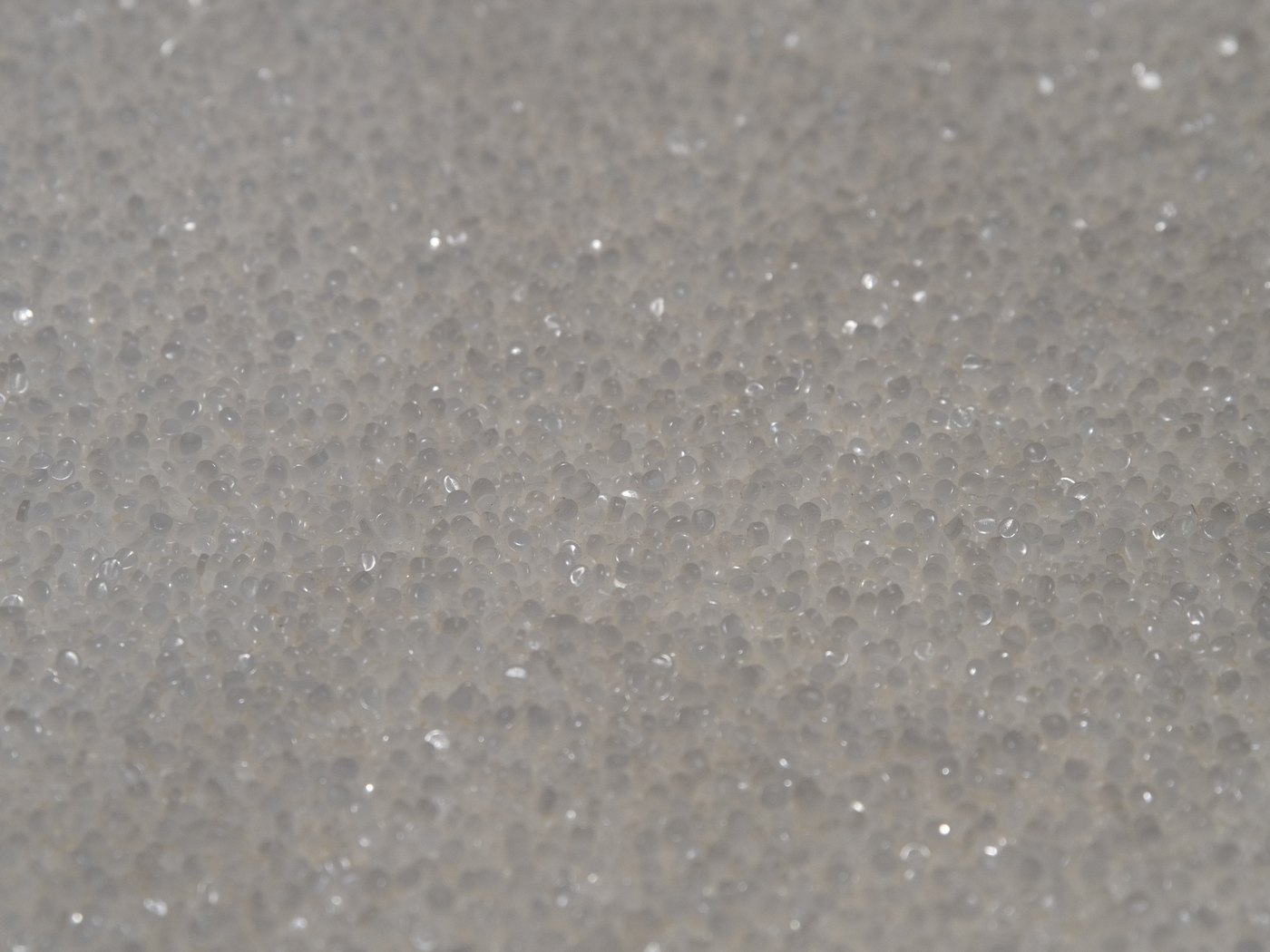

Close-up of virgin HDPE resin pellets, the raw material used to manufacture our conduit

Quality Control

Rigorous process control and industry-standard compliance on every run, overseen by a technical team with 40+ years of combined experience.

Process-Controlled

Technical Specifications & Dimensions

Dimensions, by SDR and schedule.

Minimum wall thickness and weight across our standard SDR and schedule options, ¾″ through 6″.

Trade Size	Actual OD (in.)	SDR 9		SDR 11		SDR 13.5		SDR 15.5		SDR 17		SCH 40		SCH 80
Trade Size	Actual OD (in.)	Min. Wall	lb/ft	Min. Wall	lb/ft	Min. Wall	lb/ft	Min. Wall	lb/ft	Min. Wall	lb/ft	Min. Wall	lb/ft	Min. Wall	lb/ft
¾″	1.05	0.117	0.148	0.095	0.124	0.078	0.103	0.068	0.091	0.062	0.084	0.113	0.144	0.154	0.187
1″	1.315	0.146	0.232	0.120	0.195	0.097	0.161	0.084	0.141	0.077	0.130	0.133	0.214	0.179	0.276
1¼″	1.660	0.184	0.369	0.151	0.310	0.123	0.258	0.107	0.227	0.098	0.209	0.140	0.290	0.191	0.381
1½″	1.900	0.211	0.485	0.173	0.407	0.141	0.338	0.123	0.298	0.112	0.273	0.145	0.347	0.200	0.463
2″	2.375	0.264	0.758	0.216	0.635	0.176	0.528	0.153	0.464	0.140	0.427	0.154	0.467	0.218	0.640
2½″	2.875	0.319	1.109	0.261	0.929	0.213	0.773	0.185	0.679	0.169	0.624	0.203	0.740	0.276	0.977
3″	3.500	0.389	1.646	0.318	1.378	0.259	1.145	0.226	1.010	0.206	0.926	0.216	0.968	0.300	1.308
4″	4.500	0.500	2.720	0.409	2.279	0.333	1.892	0.290	1.666	0.265	1.532	0.237	1.380	0.337	1.913
5″	5.563	0.618	4.156	0.506	3.485	0.412	2.894	0.359	2.549	0.327	2.337	0.258	1.870	0.375	2.654
6″	6.625	0.736	5.894	0.602	4.938	0.491	4.107	0.427	3.611	0.390	3.319	0.280	2.428	0.432	3.650

Wall thickness shown as minimum wall, in inches. Weight shown in pounds per foot (lb/ft). Additional SDR & SIDR options available upon request.

Reels & Ordering

Reel sizes and order quantities.

Trade Size	Standard Reel	Order Range
¾″ – 1″	83″ / 96″	5,000 – 10,000 ft
1¼″ – 2″	96″	2,500 – 8,000 ft
2½″ – 3″	96″	1,000 – 2,000 ft
4″ – 6″	96″ / 120″ / Sticks	500 ft

Reel loading capacity.

Approximate maximum footage per reel, by trade size and reel diameter. The standard put-up for each size is noted in the final column.

Trade Size	48″	66″	72″	83″	96″	102″	114″	120″	Standard Reel
¾″	3,500	9,000	10,000	12,000	—	—	—	—	83″ × 10,000′
1″	2,000	6,000	7,500	10,000	12,000	—	—	—	96″ × 10,000′
1¼″	1,500	3,000	4,500	6,000	8,000	9,000	10,000	12,000	96″ × 8,000′
1½″	—	2,000	2,800	4,200	6,000	7,000	8,500	8,700	96″ × 6,000′
2″	—	—	2,000	2,700	4,000	4,400	5,500	6,000	96″ × 4,000′
2½″	—	—	600	1,500	2,000	2,500	4,000	4,500	96″ × 2,000′
3″	—	—	—	—	1,100	1,400	1,800	2,000	96″ × 1,000′
4″	—	—	—	—	550	750	1,000	1,250	96″ × 550′
5″	—	—	—	—	—	—	500	650	120″ × 650′
6″	—	—	—	—	—	—	—	450	120″ × 450′

Footage shown is approximate maximum capacity per reel, in feet. Thinner-wall products may have reduced reel capacities due to kinking limitations. Contact us for additional put-up options and product-specific loading information.

Pull Tape

1130#High-Tensile
1250#Standard Duty
1800#Heavy Duty
2500#Extra Heavy Duty
1250# DetectableFor Locator / Trace

Colors & Stripes

Black Orange Grey Red Blue Green Yellow Violet Brown White

All colors available with stripe combinations. Custom print lines available to your project’s specifications.

Done with a reel? See the Reel Return Program →

HDPE Pipe Solutions production facility in Alto, Georgia

Alto, Georgia Our North Georgia facility, strategically located for Southeast distribution.

Now Accepting Inquiries

Tell us what your project needs.

Fast quotes, direct communication, and a team that picks up the phone. Production online today.

Talk to Us or write to sales@hdpepipesolutionsllc.com
